Dew point temperature is calculated using the August-Roche-Magnus approximation, which derives the condensation threshold from ambient temperature and relative humidity (RH). This article presents the full Magnus formula with every variable defined, walks through a step-by-step numerical example using realistic industrial inputs, and provides an interactive calculator for immediate use.
Engineers, heating, ventilation, and air conditioning (HVAC) technicians, and facility managers can use this guide as a working reference for condensation risk assessment, psychrometric chart verification, and compliance checks against ASHRAE thresholds.
Key Takeaways
- The August-Roche-Magnus approximation calculates dew point temperature as: Td = (243.04 × gamma) / (17.625 – gamma), where gamma = (17.625 × T) / (243.04 + T) + ln(RH/100), with T and Td in degrees Celsius.
- Dew point temperature is an absolute value that does not change when ambient temperature shifts; relative humidity rises and falls with temperature even when actual moisture content stays constant, making dew point the more stable control variable for facility engineers.
- ASHRAE Standard 55-2020 upper dew point limit of 16.8°C for thermally acceptable occupied spaces gives engineers a direct compliance benchmark against a calculated dew point output.
- A ±2% RH sensor error at 25°C propagates through the Magnus formula to produce approximately ±0.4°C to ±0.5°C uncertainty in the computed dew point, a margin that matters in condensation risk assessments for electronics, cleanrooms, and pharmaceuticals.
- Below 0°C, the standard Magnus constants no longer apply; frost point calculations require different empirical constants (a = 22.587, b = 273.86°C) to avoid underestimating condensation risk in cold storage and refrigerated environments.
- Compressed air systems use pressure dew point (PDP), a pressure-corrected quantity classified under ISO 8573-1; atmospheric dew point and pressure dew point are not interchangeable when sizing a compressed air dryer.
What Is Dew Point Temperature?
Dew point temperature is the temperature to which air must be cooled, at constant pressure and constant moisture content, for water vapor to begin condensing into liquid water. When any surface drops below the dew point of the surrounding air, condensation forms on that surface. This is the condensation point, and it is a physical threshold, not a comfort index.
Dew point differs fundamentally from relative humidity. Dew point is an absolute temperature value tied to the actual vapor pressure of the air. Relative humidity expresses moisture content as a percentage of what the air can hold at its current temperature. Understanding dew point vs. relative humidity is essential before applying either value to a facility control decision.
Dew Point vs. Relative Humidity
Relative humidity rises and falls as ambient temperature changes, even when the actual moisture content of the air stays constant. Dew point temperature does not. Consider a concrete example: air at 25°C and 50% RH has a dew point of approximately 13.9°C. If temperature drops to 20°C with the same absolute moisture content, relative humidity rises to approximately 65%, but dew point remains at 13.9°C. For a deeper explanation of relative humidity and how it behaves under temperature shifts, facility engineers can review the linked resource.
Process control decisions based on RH readings alone can be misleading when ambient temperature fluctuates. Dew point gives a stable, temperature-independent reference that does not shift as facility conditions change.
The Magnus Equation for Dew Point Calculation
The August-Roche-Magnus approximation is the standard formula used for dew point calculation in HVAC engineering, weather forecasting, and industrial process control. It is a computationally simplified form of the more complex Clausius-Clapeyron relation, accurate to within approximately 0.35°C across the range of -40°C to 60°C. That range covers virtually all industrial, HVAC, and laboratory applications.
The formula uses two intermediate steps. First, calculate the gamma function from ambient temperature and relative humidity. Then solve for dew point temperature using that result.
Step 1: Gamma function
gamma(T, RH) = (a × T) / (b + T) + ln(RH / 100)
Step 2: Dew point temperature
Td = (b × gamma) / (a – gamma)
Variable definitions:
- Td: Dew point temperature, in degrees Celsius
- T: Ambient dry bulb temperature, in degrees Celsius
- RH: Relative humidity, expressed as a percentage from 0 to 100
- ln: Natural logarithm
- a = 17.625: Empirical constant (dimensionless), Alduchov and Eskridge (1996) revision
- b = 243.04°C: Empirical constant, Alduchov and Eskridge (1996) revision
The constants 17.625 and 243.04 represent the Alduchov and Eskridge (1996) revision of the original Magnus-Tetens values and are more accurate over the full engineering temperature range than earlier Tetens equation coefficients. The Tetens equation is the historical precursor; the Magnus formula as used today carries these updated constants.
Converting the Formula to Fahrenheit
The Magnus formula operates natively in Celsius. The empirical constants are derived for Celsius inputs and must not be modified for Fahrenheit. To work with Fahrenheit inputs, convert the input temperature first using °C = (°F – 32) × 5/9, apply the formula, then convert the Td output using °F = °C × 9/5 + 32. This three-step process preserves the accuracy of the constants. Applying the formula directly to Fahrenheit values will produce incorrect results.
The Role of Saturation Vapor Pressure
The Magnus formula is a compact form of the saturation vapor pressure approach. Saturation vapor pressure (es) at temperature T is computed as: es = 6.1078 × exp(17.625T / (243.04 + T)), in hectopascals (hPa). Actual vapor pressure (ea) is derived from RH and es using ea = (RH / 100) × es. Dew point temperature is then the temperature at which es equals ea.
Understanding this relationship connects the Magnus formula to the psychrometric chart and to absolute humidity vs. relative humidity concepts that engineers use when evaluating air properties at different process conditions.
Interactive Dew Point Calculator
The calculator below accepts dry bulb temperature in °C or °F and relative humidity as a percentage. It outputs dew point temperature in the same unit selected for input. The calculation applies the August-Roche-Magnus approximation with Alduchov and Eskridge constants. A live version of this tool is available at the dew point calculator.
When interpreting the output, engineers should note that a dew point close to ambient temperature indicates air near saturation, with high condensation risk on any cooler surface. A dew point well below ambient temperature indicates significant remaining moisture capacity.
The ASHRAE Standard 55-2020 upper limit of 16.8°C provides a direct benchmark for occupied space compliance. Any calculated dew point approaching or exceeding that value warrants review of the facility’s humidification and ventilation system.
How to Use the Dew Point Calculator
- Enter the dry bulb temperature in the temperature field.
- Select the unit: °C or °F.
- Enter the relative humidity percentage (0 to 100).
- Read the dew point temperature output in the selected unit.
Note: the calculator assumes atmospheric pressure of approximately 1013.25 hPa (standard sea level). Results will differ slightly at high altitude or in pressurized process environments.
Worked Example: Calculating Dew Point Step by Step
The following example uses a pharmaceutical manufacturing cleanroom scenario: ambient temperature is 22°C and relative humidity is 55%. These are realistic production environment values that NOAA weather measurement references also fall within for temperate climates.
Step 1: Compute gamma
gamma = (17.625 × 22) / (243.04 + 22) + ln(55 / 100)
gamma = (387.75 / 265.04) + (-0.5978)
gamma = 1.4631 – 0.5978
gamma = 0.8653
Step 2: Compute Td
Td = (243.04 × 0.8653) / (17.625 – 0.8653)
Td = 210.24 / 16.7597
Td = 12.5°C
At 22°C and 55% RH, the dew point temperature is approximately 12.5°C. Any surface in this cleanroom cooled below 12.5°C will accumulate condensation. The ASHRAE 55-2020 upper limit of 16.8°C is not at risk in these conditions. However, if RH were to rise to 75% at the same 22°C ambient temperature, the calculation changes:
gamma = (17.625 × 22) / (265.04) + ln(75 / 100)
gamma = 1.4631 + (-0.2877)
gamma = 1.1754
Td = (243.04 × 1.1754) / (17.625 – 1.1754)
Td = 285.74 / 16.4496
Td = 17.4°C
A relative humidity increase from 55% to 75% at constant temperature raises the dew point by nearly 5°C and crosses the ASHRAE 55-2020 occupied space boundary. This sensitivity demonstrates why facility engineers cannot treat RH as a loosely managed variable when operating near compliance thresholds.
Frost Point: The Below-Freezing Variant
When ambient temperature falls below 0°C, condensation occurs as frost rather than liquid water. The Magnus constants change for ice saturation: a = 22.587 and b = 273.86°C. Cold storage engineers, food processing facility managers, and refrigeration system designers must use the frost point formula when any surface in the system operates below freezing.
Using the standard liquid-phase constants below 0°C underestimates the condensation threshold and produces a frost point that is too low, which can result in undersized refrigeration capacity or missed condensation risk assessments.
Measurement Inputs and Formula Accuracy

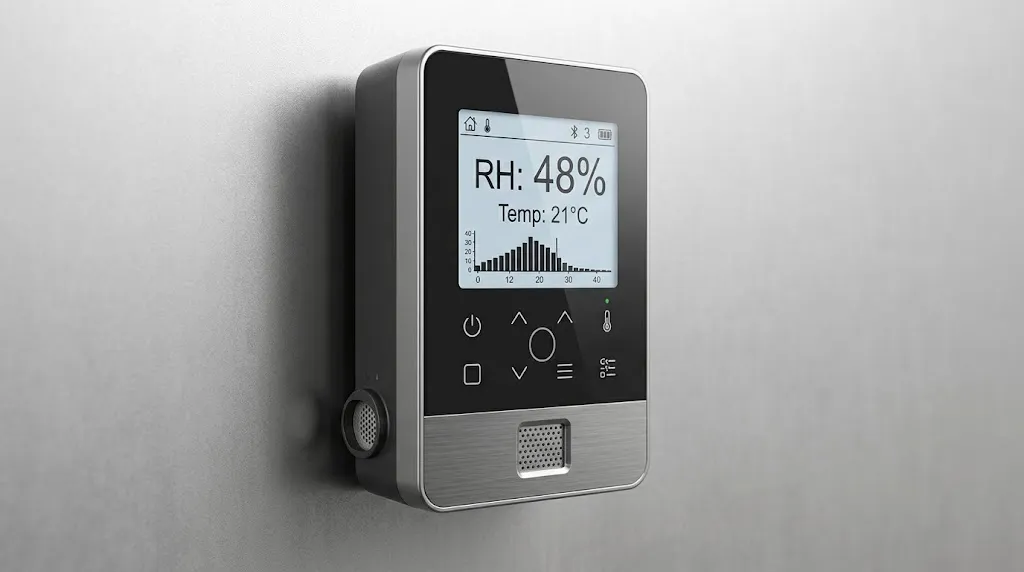

The Magnus formula is only as accurate as the sensor inputs feeding it. A calculated dew point is a derived value, not a directly measured one. Its accuracy is bounded by the accuracy of the temperature and RH sensors providing T and RH. Engineers relying on derived dew point for compliance or condensation risk decisions must account for this.
RH sensors used in industrial environments are commonly specified at ±2% to ±3% RH accuracy under IEC 60068-2-78 test conditions. That uncertainty propagates through the Magnus formula into the dew point output. At 25°C, a ±2% RH sensor error produces roughly ±0.4°C to ±0.5°C error in the computed dew point. At 5°C, the same ±2% RH error produces a smaller absolute dew point error because the saturation vapor pressure curve is less steep at lower temperatures.
Conditions where input error matters most:
- Electronics and circuit boards: Condensation risk assessments require dew point accuracy within fractions of a degree when surfaces approach the condensation point.
- Pharmaceutical cleanrooms: ICH Q1A humidity stability conditions define acceptance boundaries; a ±0.5°C dew point error can place a facility outside a defined stability band without triggering an alert.
- Data centers: ASHRAE A1-class lower dew point limit is 5.5°C; at this threshold, even a small sensor error can produce a false-compliant reading that masks electrostatic discharge (ESD) risk.
- Compressed air dryer sizing: Pressure dew point specifications are tight, and errors in atmospheric dew point inputs cascade into incorrect dryer selection.
Engineers using derived dew point for compliance decisions should cross-check against a calibrated chilled mirror what is a hygrometer or a direct dew point sensor rather than relying solely on the Magnus approximation from standard RH sensors. A review of humidity sensors by type and accuracy class can help facilities select instrumentation appropriate for their tolerance requirements.
Atmospheric vs. Pressure Dew Point
The Magnus formula calculates atmospheric dew point at ambient atmospheric pressure. Compressed air systems, industrial gas lines, and pressurized process environments use pressure dew point (PDP), which accounts for the fact that compressing air raises its dew point significantly.
A compressed air stream with an atmospheric dew point of 3°C at 1 bar absolute may have a pressure dew point of -20°C or lower when measured at system operating pressure. ISO 8573-1 classifies compressed air quality by pressure dew point, not atmospheric dew point. Using the atmospheric formula to size a compressed air dryer will produce an incorrect, undersized result.
Dew Point in Industrial Humidity Control
Dew point temperature is not an abstract psychrometric variable in industrial facilities. It defines specific compliance limits, drives equipment selection, and determines whether a process environment is within or outside its validated operating range. The thresholds vary by facility type and applicable standard.
Data Centers
- Dew point lower limit: ASHRAE A1-class lower limit is 5.5°C; below this threshold, ESD risk on server hardware increases. For humidity control in data centers, operators must keep dew point above this floor continuously.
- Upper limit: ASHRAE 9.9-2021 defines the full environmental envelope for IT equipment; exceeding the upper boundary risks condensation on components.
- Guidance source: ASHRAE 9.9-2021 Thermal Guidelines for Data Processing Environments covers the complete operating and allowable ranges.
Pharmaceutical Manufacturing
- Long-term stability condition: ICH Q1A defines 25°C/60% RH, corresponding to a dew point of approximately 13.9°C.
- Accelerated stability condition: ICH Q1B defines 40°C/75% RH, corresponding to a dew point of approximately 26.4°C. For pharmaceutical manufacturing humidification, exceeding these dew points during storage or production can compromise stability testing validity.
Cleanrooms
- Typical operating range: ISO 14644 does not directly specify humidity, but process requirements and adjacent standards often impose a maximum dew point below 11°C to 13°C to prevent condensation on wafers, printed circuit boards (PCBs), or precision optics. For cleanroom humidity control, dew point is a derived compliance parameter tied to the specific process type.
Cold Storage and Food Processing
- Condensation load: Product surfaces in cold storage are often below the ambient dew point of infiltrating warm air. Calculating the dew point of that infiltrating air determines the condensation load a refrigeration system must handle on door openings, directly sizing the system’s moisture removal capacity.
Printing Facilities
- Paper moisture equilibration: Paper moisture content equilibrates with ambient relative humidity. Dew point swings cause paper to absorb or release moisture unevenly, producing curl, misregistration, and static. Facilities typically target a dew point range consistent with 45% to 55% RH at process temperature, using wet-bulb temperature and heat index data to monitor air condition stability.
ASHRAE Dew Point Standards for Occupied Spaces
ASHRAE Standard 55-2020 specifies a maximum dew point of 16.8°C for thermally acceptable occupied spaces, reflecting the humidity level above which occupant discomfort and moisture accumulation risks increase. The standard also defines a lower acceptability boundary through its 80% occupant satisfaction criteria. Mechanical engineers use these limits to set humidification and dehumidification system targets for HVAC-controlled buildings.
Facilities operating humidity control systems for precision environments maintain dew point within a defined range rather than simply below a ceiling. That requires both a lower humidity floor and an upper condensation limit, with continuous monitoring and control to hold the band. Data center humidification systems represent one application where this two-boundary approach is standard engineering practice.
How Smart Fog Systems Maintain Dew Point Below Condensation Risk Thresholds
Precision dew point management in an industrial facility depends on a humidification system that adds moisture to the air without allowing local saturation conditions to develop at any surface. This is a physical constraint, not a control software problem. The mechanism by which moisture is introduced determines whether local dew point conditions can form at ducts, equipment racks, or product surfaces.
An equal-sized droplet grid, where every droplet self-evaporates before reaching any surface, addresses this constraint directly. Moisture enters the air as vapor, not as surface-contacting liquid. This means the humidification process can raise RH substantially without raising the moisture content of surfaces, ducts, or equipment. Under proper system design, this prevents surfaces from reaching their local condensation point even as the bulk air RH increases. Note that this non-wetting behavior applies under proper system design; direct exposure to the fog stream will wet a surface.
Precision Humidity Control Without Surface Condensation Risk
Smart Fog’s industrial humidification systems produce an equal-sized droplet grid through compressed air and water mixed at a proprietary nozzle. Each droplet carries a slight charge that prevents re-aggregation, and the droplets self-evaporate before contacting any surface. The system maintains RH up to 99% with ±1 to 2% precision.
That precision has a direct dew point implication. At 20°C, the dew point difference between 45% RH and 47% RH is approximately 0.4°C. Holding the system within that ±1 to 2% RH band means the dew point is also held within a correspondingly narrow range, continuously. Key performance points:
- No moving parts in the humidification process, which eliminates mechanical wear as a source of humidity drift.
- Maintenance intervals extending to every two years, supporting consistent dew point management over long operating periods without humidity excursions from unmaintained equipment.
- Continuous 24/7 industrial operation without operator intervention between maintenance cycles.
Applications Where Dew Point Accuracy Drives System Selection
The dew point formula this article presents is not only a calculation tool. In several environments, the output of that formula directly determines whether a humidification system specification is met or violated. Data centers must hold dew point above 5.5°C to prevent ESD events on server hardware.
Pharmaceutical manufacturing facilities must maintain dew point within ICH Q1A stability condition ranges. Electronics and PCB manufacturing environments must prevent dew point from reaching surface temperatures on precision components. Printing facilities must control dew point tightly enough to prevent paper moisture variation across a production run.
In each of these environments, the calculated dew point is a performance specification, not a background variable.
Final Thoughts
The Magnus formula gives engineers a reliable, computationally accessible method for deriving dew point temperature from ambient temperature and relative humidity. The August-Roche-Magnus approximation with Alduchov and Eskridge constants is accurate to within approximately 0.35°C across the full industrial temperature range, provided the sensor inputs are themselves accurate.
Practitioners should apply the formula with awareness of its boundaries. Sensor error propagates into the output. Below-freezing applications require frost point constants, not liquid-phase values. Compressed air applications require pressure dew point, not atmospheric dew point. And the calculated result is most useful when evaluated against a defined standard threshold, whether that is ASHRAE 55-2020’s 16.8°C occupied space limit, the ICH Q1A stability condition, or an ASHRAE 9.9-2021 data center envelope.
For facilities where dew point must be held within a defined engineering specification continuously, the humidification system selection is as important as the calculation. speak with a Smart Fog engineer to discuss precision humidification system design for a specific facility application.
Frequently Asked Questions
How do you calculate dew point temperature from relative humidity and ambient temperature?
Dew point temperature is calculated using the August-Roche-Magnus approximation. First, compute gamma = (17.625 × T) / (243.04 + T) + ln(RH / 100), where T is ambient temperature in Celsius and RH is relative humidity as a percentage. Then compute Td = (243.04 × gamma) / (17.625 – gamma). The result is dew point temperature in Celsius. For Fahrenheit inputs, convert to Celsius first, apply the formula, then convert the output back.
What is the difference between dew point and relative humidity, and which one should engineers use for facility control?
Relative humidity expresses moisture content as a percentage of the air’s maximum capacity at its current temperature. Dew point captures that same moisture content directly as a temperature reading, independent of how warm or cool the air currently is. When ambient temperature changes, relative humidity changes even if no moisture is added or removed. Dew point does not. For facility control decisions, dew point is the more stable and reliable variable because it does not shift with temperature fluctuations.
What dew point temperature is considered uncomfortable for occupied spaces, and what standard defines that limit?
ASHRAE Standard 55-2020 defines a maximum dew point of 16.8°C (62.2°F) for thermally acceptable occupied spaces. Above this threshold, occupant discomfort increases and moisture accumulation risk rises. Mechanical engineers use this limit as the upper target when setting humidification and dehumidification system setpoints for HVAC-controlled buildings.
How accurate is the Magnus formula for calculating dew point across industrial temperature ranges?
The August-Roche-Magnus approximation with Alduchov and Eskridge (1996) constants is accurate to within approximately 0.35°C for temperatures between -40°C and 60°C. Few real-world facility conditions fall outside that band, which is why the formula sees broad use across HVAC, industrial process control, and laboratory settings. The formula is an approximation of the Clausius-Clapeyron relation and introduces negligible error for engineering purposes within this range.
What is pressure dew point and how does it differ from the atmospheric dew point calculated by the Magnus equation?
Atmospheric dew point, as calculated by the Magnus formula, is the condensation temperature of air at ambient atmospheric pressure (approximately 1013.25 hPa). Pressure dew point (PDP) accounts for the elevated pressure in compressed air systems, where compressing air significantly raises its dew point relative to the same air at atmospheric pressure. Facilities that apply the atmospheric Magnus output directly to compressed air dryer sizing will undersize the equipment, since the two values diverge sharply once air is pressurized. Always confirm compressed air dew point against equipment rated for PDP, not the atmospheric formula.
How does sensor measurement error in a hygrometer affect the accuracy of a calculated dew point?
A calculated dew point is only as accurate as the temperature and RH sensor inputs feeding the formula. Industrial RH sensors are commonly specified at ±2% to ±3% RH accuracy. At 25°C, a ±2% RH sensor error propagates through the Magnus formula to produce approximately ±0.4°C to ±0.5°C uncertainty in the calculated dew point temperature. At lower temperatures, the error is smaller because the saturation vapor pressure curve is less steep. For compliance-critical applications, cross-checking against a calibrated chilled mirror hygrometer or direct dew point sensor is recommended.
At what dew point does condensation risk become significant for electronics, server hardware, or sensitive manufacturing equipment?
For data center server hardware, ASHRAE 9.9-2021 defines a lower dew point limit of 5.5°C for Class A1 equipment. Below this threshold, ESD risk on hardware increases. For electronics manufacturing and PCB assemblies, the threshold depends on the surface temperature of components; condensation forms whenever a surface temperature falls below the ambient dew point. Cleanroom processes typically hold dew point below 11°C to 13°C to prevent condensation on wafers and precision components.
What is frost point and when should it be used instead of the standard dew point formula?
Frost point is the temperature at which water vapor deposits directly as frost on a surface below 0°C. When ambient or surface temperatures are below freezing, the saturation vapor pressure over ice differs from saturation over liquid water, and the standard Magnus constants (a = 17.625, b = 243.04°C) no longer apply. The frost point formula uses a = 22.587 and b = 273.86°C. Cold storage engineers, food processing facilities, and refrigeration system designers must use the frost point variant when any surface in the system operates below 0°C to avoid underestimating condensation and frost accumulation risk.
