- Humidity sensors measure relative humidity and convert it into a usable electrical signal for monitoring and control.
- Capacitive sensors are the most widely used across HVAC, industrial, and laboratory environments.
- Optical sensors provide the highest accuracy and are used in calibration and pharmaceutical applications.
- Accuracy ratings directly impact suitability, with ±1% required for regulated environments.
- Sensor performance depends on correct placement, calibration, and integration with control systems.
What Is a Humidity Sensor?
A humidity sensor is a device that measures relative humidity in the surrounding air and converts that measurement into an electrical signal. In many professional applications, it also measures temperature so the system can produce a more accurate humidity reading and support automated environmental control.How a Humidity Sensor Differs from a Hygrometer
A hygrometer is the general instrument used to measure humidity, while a humidity sensor is the sensing element or electronic device that detects moisture and produces a usable output signal. For a closer look at how hygrometers measure humidity, it helps to separate the display instrument from the sensing element and transmitter. In simple terms, a hygrometer may only display a reading, but a humidity sensor is built to feed data into a monitoring or control system. This distinction matters in professional environments because facility operators usually need more than a visible reading. They need a signal that can be logged, transmitted, trended, and used to trigger control actions across HVAC or humidification systems.Humidity Sensor vs Humidity Transmitter: What the Terms Mean
A humidity sensor detects the environmental change caused by moisture and generates the initial measurement signal. A humidity transmitter takes that measurement, conditions it, and converts it into a standardized output suitable for industrial communication and control. This is why the two terms are related but not interchangeable. In many facilities, the sensor performs the measurement, while the transmitter makes that data usable for longer cable runs, automation panels, and building management systems. Here is the practical difference between these devices:- Hygrometer: Used mainly to display or check humidity readings locally.
- Humidity sensor: Detects moisture and generates the measurement signal.
- Humidity transmitter: Converts the sensor output into a standardized signal such as 4-20 mA, 0-10 V, or digital communication for controllers and monitoring systems.
How Humidity Sensors Work: The Main Technology Types
Humidity sensors work by detecting how moisture changes the physical or electrical properties of a sensing material. That response is then converted into a signal that can be displayed, logged, or used by a control system to maintain the target environment.Capacitive Humidity Sensors: How They Work and Where They Are Used
Capacitive humidity sensors are the most widely used type in commercial and industrial monitoring. They work by using a hygroscopic dielectric layer, usually a polymer or metal oxide, placed between two electrodes. As the material absorbs moisture from the air, its dielectric constant changes, and that change is measured as a change in capacitance. This technology is widely used because it provides a strong balance of accuracy, stability, response time, and operating range. Capacitive sensors are commonly selected for HVAC systems, room monitoring, industrial automation, and many laboratory environments where reliable relative humidity measurement is required.Resistive Humidity Sensors
Resistive humidity sensors measure how the electrical resistance of a sensing material changes as it absorbs moisture. The sensing layer becomes more conductive when humidity rises, which allows the device to estimate the moisture level in the surrounding air. These sensors can be useful where general humidity indication is sufficient, but they are usually less stable and less precise than capacitive sensors. They are more often used in lower-cost monitoring applications than in environments that require tighter accuracy or long-term performance.Thermal Conductivity Sensors
Thermal conductivity sensors measure humidity by comparing the thermal behavior of dry air with that of moist air. Because water vapor changes the thermal conductivity of the gas mixture, the sensor can use that difference to estimate the moisture content of the air. This type of sensor is typically used for measuring absolute humidity rather than relative humidity. It is valued in certain industrial environments because it can perform well in high-temperature or demanding process conditions where durability matters more than compact form factor.Optical Humidity Sensors
Optical humidity sensors are used where the highest level of measurement accuracy is required. The most well-known example is the chilled mirror instrument, which determines dew point by cooling a reflective surface until condensation begins and then detecting that condensation optically. This approach is considered one of the most accurate available because it is based on a direct physical measurement rather than an inferred electrical response from a sensing layer. Optical methods are commonly specified in calibration laboratories, metrology settings, pharmaceutical validation work, and other applications where very high accuracy and traceable reference measurement are required. Here is a simple view of how the main sensor technologies differ in practice:- Capacitive: Best for general industrial, HVAC, and laboratory monitoring where a strong balance of performance and practicality is needed.
- Resistive: Best for lower-cost applications where approximate humidity indication is acceptable.
- Thermal conductivity: Best for process environments that require absolute humidity measurement or high-temperature durability.
- Optical: Best for calibration, laboratory, and metrology environments that require the highest measurement accuracy.
Combined Temperature and Humidity Sensors
Relative humidity cannot be measured accurately without temperature data, because the moisture-holding capacity of air changes with temperature. For this reason, most professional humidity sensors are designed to measure both temperature and humidity together as a single, compensated output.Why Temperature Measurement Is Always Required for Accurate RH
Relative humidity is defined as the ratio between the actual moisture in the air and the maximum amount of moisture the air can hold at a given temperature. Because this maximum capacity increases as temperature rises, even a small temperature shift can change the relative humidity reading significantly. Without accurate temperature compensation, humidity readings become unreliable. Combined sensors continuously measure both variables and apply correction at the signal level, ensuring that the output reflects true environmental conditions.What to Look for in a Combined Sensor
Selecting a combined temperature and humidity sensor requires focusing on performance, reliability, and integration with facility systems rather than component-level features. The goal is to ensure long-term measurement stability and compatibility with control infrastructure. Key factors to evaluate include:- Measurement accuracy: Ensure the sensor meets the required RH accuracy, especially in regulated or sensitive environments.
- Temperature compensation quality: The sensor should provide fully compensated RH output, not raw or partially corrected values.
- Long-term stability: Sensors should maintain performance over time with minimal drift under operating conditions.
- Calibration capability: Support for traceable calibration is critical in laboratory and pharmaceutical environments.
- Output compatibility: The sensor or transmitter should support standard outputs such as 4-20 mA, 0-10 V, or digital communication for integration with BMS or PLC systems.
Key Humidity Sensor Specifications Explained
Humidity sensor specifications define how the device performs under real operating conditions. These values determine whether a sensor is suitable for general monitoring or for precision-controlled environments such as laboratories, cleanrooms, or regulated facilities.Accuracy: What ±1%, ±2%, and ±3% Mean in Practice
Accuracy defines how close the reported humidity value is to the actual environmental condition. A sensor with ±1% accuracy will provide a much tighter measurement range than one rated at ±3%, which directly impacts process control and compliance. In practice:- ±1% RH: Required for calibration laboratories, pharmaceutical environments, and cleanrooms where strict control and documentation are necessary.
- ±2% RH: Suitable for most industrial and commercial environments where consistent monitoring is needed.
- ±3% RH or higher: Acceptable for general HVAC monitoring but not suitable for regulated or high-precision applications.
Response Time: Why It Matters in Controlled Environments
Response time indicates how quickly a sensor reacts to a change in humidity. In environments where conditions can shift rapidly, slow response can delay corrective action and allow conditions to move outside acceptable limits. Fast response is especially important in:- Laboratories with controlled environments.
- Electronics manufacturing areas sensitive to static discharge.
- Spaces with frequent door openings or airflow changes.
Operating Range and Long-Term Stability
Every humidity sensor is designed to operate within a defined temperature and humidity range. Operating outside this range can reduce accuracy, accelerate wear, or cause permanent damage to the sensing element. Long-term stability refers to how well the sensor maintains its accuracy over time. High-quality sensors retain their performance across extended use, reducing the need for frequent recalibration and ensuring consistent environmental control.Sensor Drift and Calibration Requirements
Sensor drift is the gradual change in measurement accuracy that occurs over time due to environmental exposure, contamination, or aging of the sensing element. Even high-performance sensors will experience some level of drift during operation. To maintain reliable performance:- Calibration should be performed at defined intervals based on application requirements.
- Sensors in high humidity or contaminated environments may require more frequent checks.
- Replacement should be considered when sensors no longer meet required accuracy thresholds.
Humidity Sensor Types by Form Factor and Installation
The physical design and installation method of a humidity sensor directly affect how accurately it represents real environmental conditions. Selecting the correct form factor ensures that the sensor captures meaningful data while remaining protected within the operating environment.Wall-Mounted Room Sensors
Wall-mounted sensors are commonly used to monitor ambient room conditions in commercial and industrial spaces. They are positioned to reflect general air conditions within an occupied or controlled area. These sensors are suitable for applications where maintaining consistent room-level humidity is important, such as offices, laboratories, and storage areas. Proper placement away from localized airflow ensures that readings represent the true environment.Duct-Mounted Sensors for HVAC Integration
Duct-mounted sensors are installed inside supply or return air ducts to measure the condition of air moving through HVAC systems. They are designed to handle continuous airflow and provide data used for system-level control. These sensors support automated adjustments to humidification or dehumidification systems. However, duct measurements reflect air within the system rather than the full room environment, so they are often used alongside room sensors for accurate control.Wireless and IoT-Connected Humidity Sensors
Wireless sensors are used to monitor humidity across multiple locations without complex wiring. In large facilities, they support distributed monitoring and allow data to be collected from different zones in real time. These systems are useful for:- Multi-point monitoring in large spaces.
- Retrofitting existing facilities.
- Remote alerts and centralized data logging.
Probe-Style and Handheld Sensors
Probe-style and handheld sensors are used for inspection, validation, and spot measurement. They allow technicians to check conditions in specific areas where fixed sensors may not be installed. These tools are commonly used for:- Verifying installed sensor accuracy.
- Measuring conditions in hard-to-reach areas.
- Supporting maintenance and calibration routines.
Choosing a Humidity Sensor by Application
The right humidity sensor depends on required accuracy, operating conditions, compliance standards, and how the sensor integrates with your control system.Laboratories and Pharmaceutical Facilities
In pharmaceutical settings, a digital temperature and humidity sensor must deliver high accuracy to meet FDA, GMP, and EU GMP Annex 1 environmental monitoring requirements. These environments rely on tightly controlled relative humidity and temperature conditions, supported by calibrated temperature sensor integration for precise measurement. Reliability is critical for product stability and validation processes. Facilities often use high-grade digital humidity sensor systems with traceable calibration, while humidity meters and handheld tools are used for verification and audits.Data Centers and Electronics Manufacturing
Data centers depend on stable humidity and temperature control to prevent electrostatic discharge and corrosion. A properly selected humidity and temperature sensor ensures consistent readings that protect sensitive equipment. In electronics manufacturing, where humidity sensors use fast-response detection, even small fluctuations can impact production quality. Integrated monitoring systems often include digital humidity measurement paired with temperature tracking to maintain controlled micro-environments.Cold Storage and Food Processing

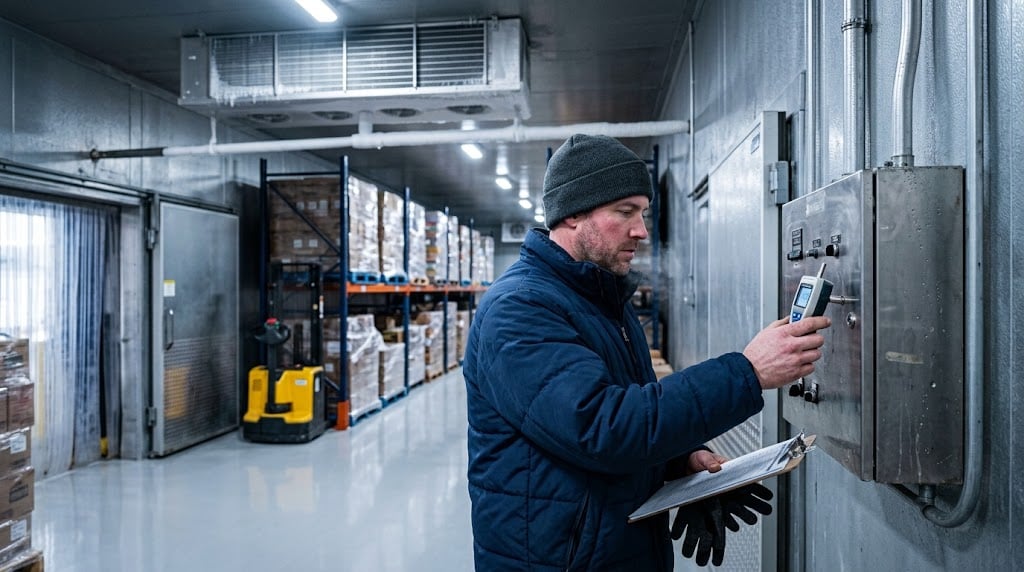

Cold storage environments require durable humidity sensors that can operate under high moisture and low temperature conditions. Maintaining correct relative humidity and temperature is essential for preventing spoilage and preserving product quality. Key considerations include:- Corrosion resistance for long-term operation in damp conditions.
- Sanitary design to reduce contamination risks.
- Rapid response from the humidity and temperature sensor to handle door openings and environmental shifts.
Cannabis Cultivation and Greenhouses
Greenhouses rely on precise humidity and temperature monitoring to control plant growth conditions. A well-placed digital humidity sensor helps manage transpiration, condensation, and mold risks. These environments often use distributed systems where humidity sensors use multiple sensing points across zones. Data is fed into automated systems, sometimes connected through a microcontroller interface or displayed locally via an LCD display, to adjust ventilation, irrigation, and airflow in real time.How Humidity Sensors Integrate with Humidity Control Systems
The connection between measurement and control is what makes modern environmental systems effective. A humidity sensor or humidity and temperature sensor provides continuous data that allows facilities to maintain stable conditions without manual intervention. This integration ensures that environmental changes are detected early and corrected automatically, improving system reliability and operational consistency.From Sensor to Controller to Humidifier: How the System Works
A digital humidity sensor continuously measures moisture levels and works alongside a temperature sensor to provide a compensated reading. This combined humidity and temperature data is transmitted to a controller such as a PLC or BMS. The controller compares real-time values against defined setpoints. If conditions fall outside the target range, the system activates equipment such as humidifiers or dehumidifiers to restore balance. This closed-loop system ensures stable environmental control across the facility.What Sensor Placement Gets Wrong in Large Facilities
Even advanced humidity sensors or digital humidity systems will produce inaccurate results if placed incorrectly. Poor placement can lead to readings that do not reflect actual room conditions, affecting overall system performance. To maintain accurate monitoring, avoid these common issues:- Proximity to heat sources that distort relative humidity and temperature readings
- Direct airflow exposure that creates false localized measurements
- Dead zones where airflow is limited and data does not represent the full space
- Installation on exterior walls where temperature variation affects the humidity and temperature sensor
