Smart Fog® ES100 Industrial Humidifiers

ES100 Industrial Humidifiers Models:


Capacity: 0 to 1.5GPH
Minimum Temperature: 50°F
Compressed Air requirement: 2CFM @100psi-150psi
Water pressure requirement: 1 to 100psi


Capacity: 0 to 1.5GPH
Minimum Temperature: 30°F
Compressed Air requirement: 2CFM @100psi-150psi
Water pressure requirement: 1 to 100psi


Capacity: 0 to 3GPH
Minimum Temperature: 50°F
Compressed Air requirement: 4CFM @100psi-150psi
Water pressure requirement: 1 to 100psi


Capacity: 0 to 3GPH
Minimum Temperature: 30°F
Compressed Air requirement: 4CFM @100psi-150psi
Water pressure requirement: 1 to 100psi


Smart Fog® ES100 Humidifier is an all enclosed plug and play modular intelligent humidification system. Smart Fog ES100 unit does not require any regulation or setting, everything is per-calibrated to the most efficient and effective performance.

smart fog es100 system setup img

Click here to download our Brochure

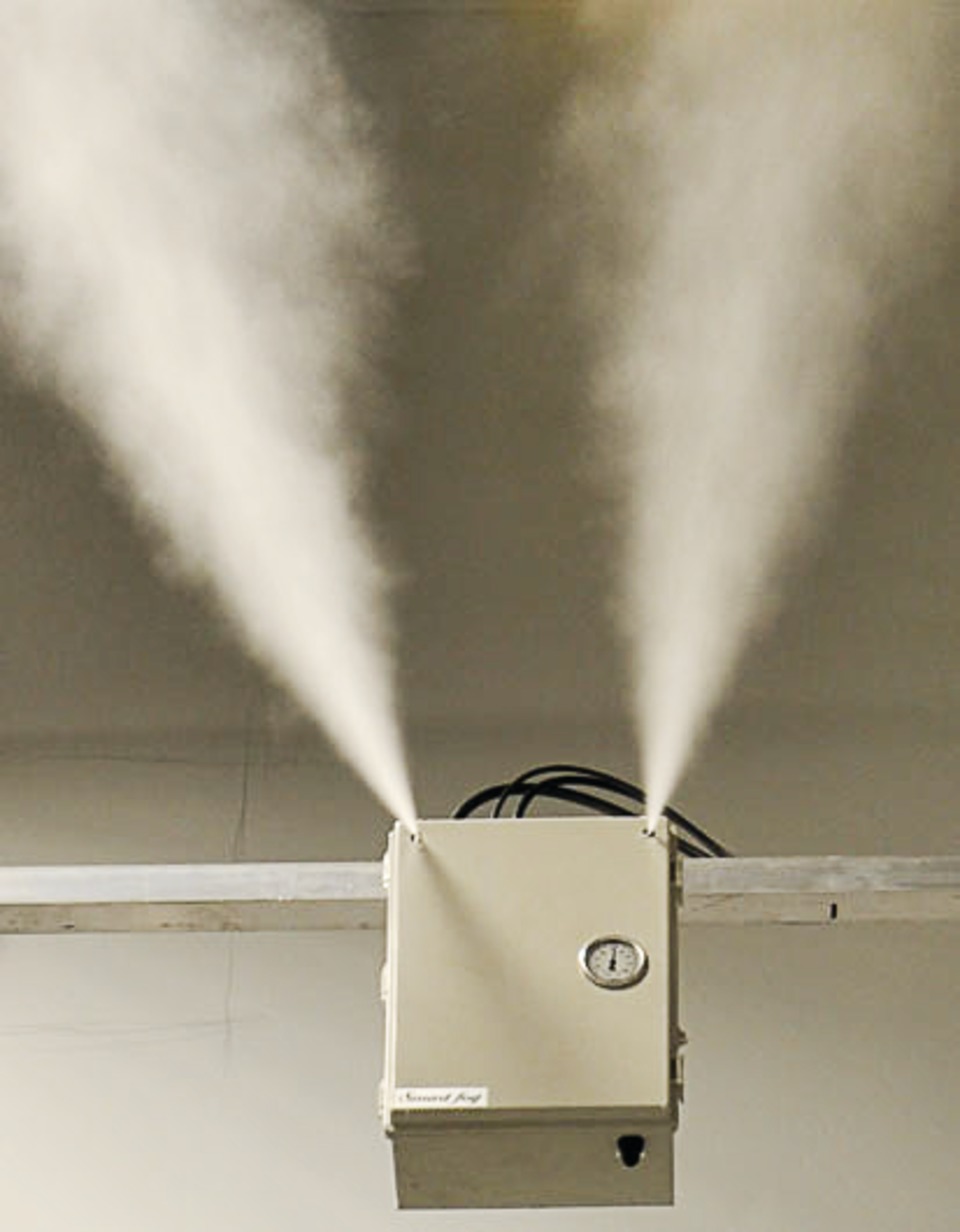

es1002 03 11074697


  • Maintenance free, no moving parts
  • Fast and simple plug and play installation
  • 4.2 micron droplet size with Smart Fog® equal air spacing technology
  • Smart Fog® Double Cooling technology (Evaporative Cooling and Cold Fog)
  • Non-clogging mechanism
  • Modular system fits to any application and size.
  • Precise Relative Humidity Control (±1%) from 1% to 100% in any condition
  • Conserve Energy and Water
  • Safe! Low operating pressure
  • Eliminate mold, bacteria, viruses and insects
  • Complete dust suppression (any size partials)
  • High Quality workmanship, MADE IN THE USA
  • NO wet spots, Guaranteed

What maintenance is required?

The Smart Fog ES100 humidifier does not require any maintenance and does not contain any moving parts. The only maintenance required on the ES100 System is, replacing the filter elements in the ES100PB once every two years.

Included Accessories

ES100PB Control Center
Smart Fog® es100PB Control Unit is a reliable control center for the es100 system. Easy plug & play install and maintenance free design provides a durable industrial solution for humidity control application.

CPLC Controller

Smart Fog® CPLC Controller unit is an industrial relative humidity and temperature controller. This unit provides accurate, user friendly control interface. Proprietary intelligent algorithms provide unsurpassed accuracy and set and forget functionality.

S Series – Relative Humidity Sensor

The Smart Fog® S Series relative humidity sensors are designed to withstand harsh environments, and provide accuracy of 1% and 0.1% (depending on the model). All sensors are equipped with temperature compensation.

Pipe & Fittings Kit

All the pipe & fittings included with the Smart Fog system is made of PE. We provide you with all the pipe & fittings required to put the system together. The fittings we use are quick connect and easy assembly. All parts are reusable. Safe installation , no human hazard.

Optional Parts

Smart Fog® ZeroTDS® Filter System

Four stage filter which removes all minerals from the water, providing pure DI water.

INJ-1 Chemical Injector

Fully automated precise injection of any water dissolving material. No priming required. User-friendly interface allows digital input of the desired ratio.

PC Communication Package

The easy to use PC Communication package can be used for data collection and remote system control.

Customized Programming, Alarms & Connections to Building Automation Systems

Our dedicated engineers are able to customized the CPLC Controller program to suit your application.
The CPLC Controller is able to communicate with most Building Automation Systems.


Clean Environment with Smart Fog

Smart Fog system can incorporate any water dissolving material. Clean environment
